THE T-REX.
GRAVITY
Used for daily small to large processing quantities.
Suitable for small to very large parts.

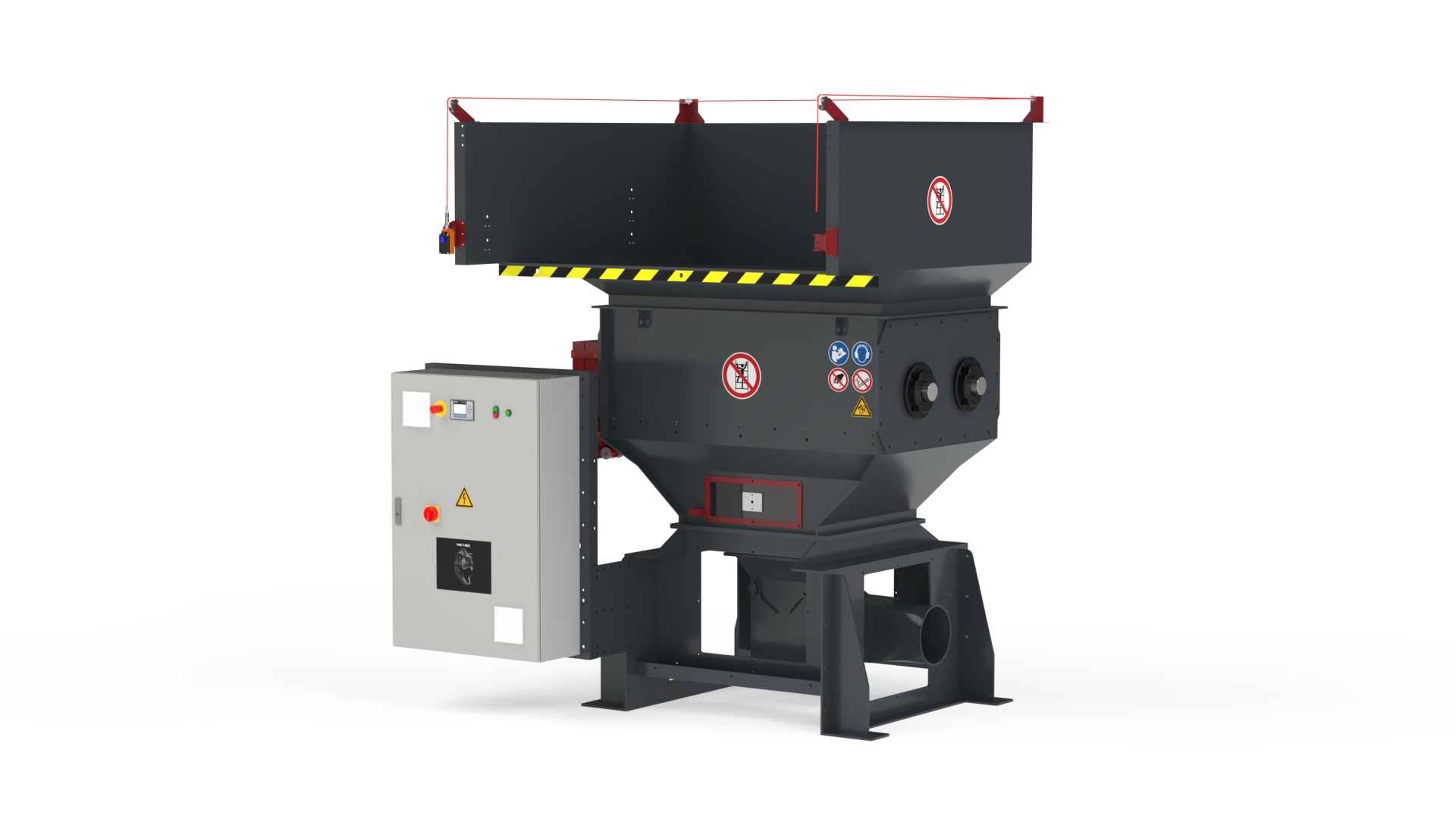

THE T-REX.
GRAVITY | EPS
Cushing system for EPS foam parts.
Model variant with pre-crusher for vertical feeding.
End product is extracted with a blower.
Used for daily small to very large processing quantities.
Suitable for small to large parts.
Sizes
THE T-REX 1000 GRAVITY EPS | 300 Kg/h
THE T-REX 1200 GRAVITY EPS | 400 Kg/h
THE T-REX 1400 GRAVITY EPS | 600 Kg/h
THE T-REX 1600 GRAVITY EPS | 800 Kg/h
THE T-REX 2000 GRAVITY EPS | 1.200 Kg/h
Materials
EPS molded parts and packaging up to 40 g/l | EPS insulation boards up to 40 g/l | EPS Facade insulation panels | EPS insulation boards with bitumen or tar adhesions | NEOPOR® insulation boards | EPS insulation boards with plaster adhesion | EPS plant container
Industries
Logistics center | EPS packaging and molded parts manufacturer | Insulation manufacturer | Prefabricated house manufacturer | Caravan manufacturer | Precast concrete element manufacturer | Specialist waste management companies | Recycling companies in general | Recycling plants for plastic waste | Poroton manufacturer
Options
Conveyor belt for more efficient feeding | Individually configurable silo size | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

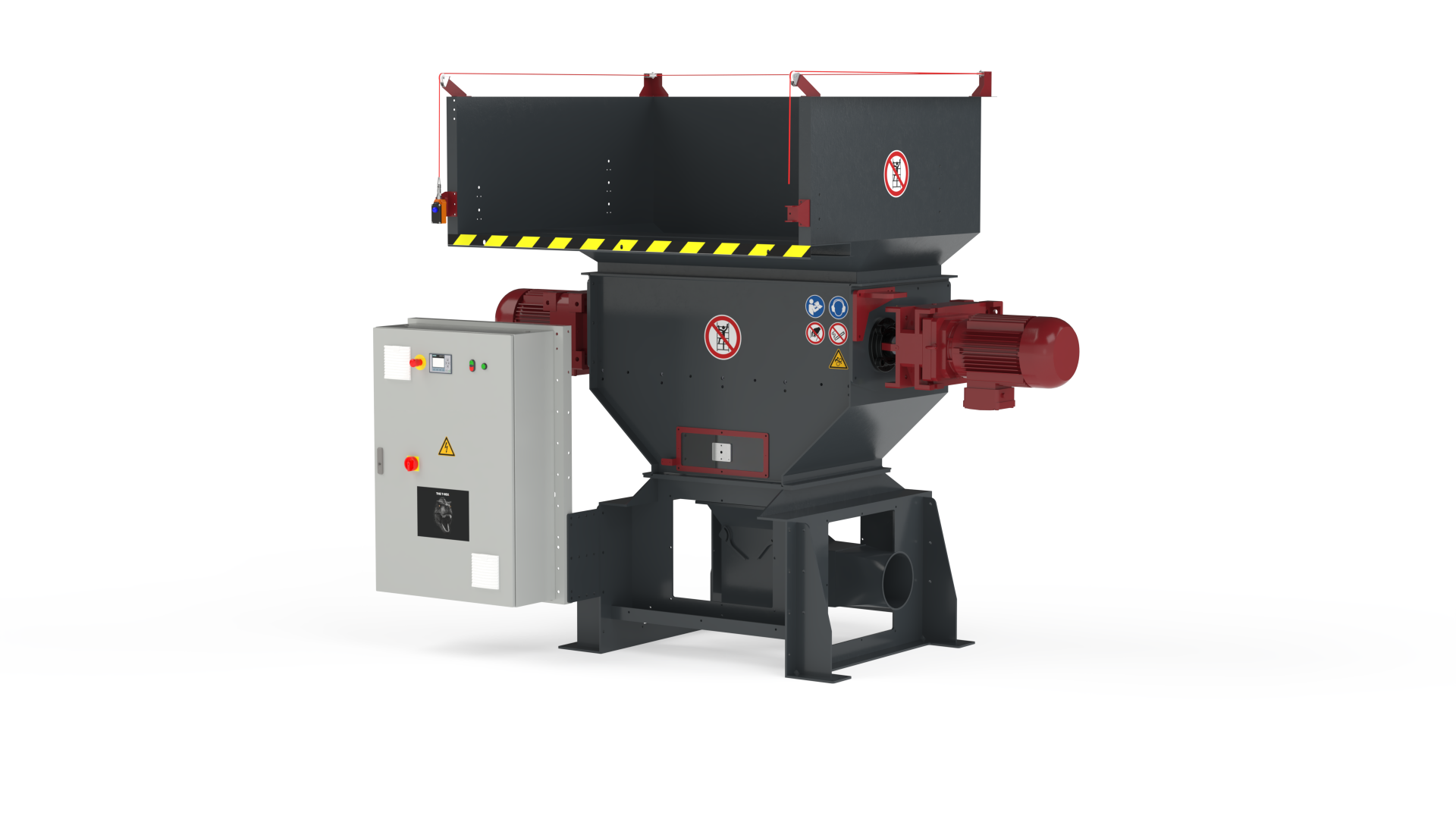

THE T-REX.
GRAVITY | EPS LARGE
Shredding system for very large EPS foam parts.
Model variant with very large primary crusher for vertical feeding.
The end product is extracted by a blower.
Used for daily medium to very large processing quantities.
Suitable for very large parts.
Sizes
THE T-REX 1400 GRAVITY EPS LARGE | 1.000 Kg/h
THE T-REX 1600 GRAVITY EPS LARGE | 1.200 Kg/h
THE T-REX 2000 GRAVITY EPS LARGE | 1.500 Kg/h
THE T-REX 2000 XL GRAVITY EPS LARGE | 2.000 Kg/h
Materials
EPS molded parts and packaging up to 40 g/l | EPS insulation boards up to 40 g/l | EPS Facade insulation panels | NEOPOR® insulation boards
Industries
Logistics center | EPS packaging and molded parts manufacturer | Recycling plants for plastic waste
Options
Conveyor belt for more efficient feeding | Individually configurable silo size | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

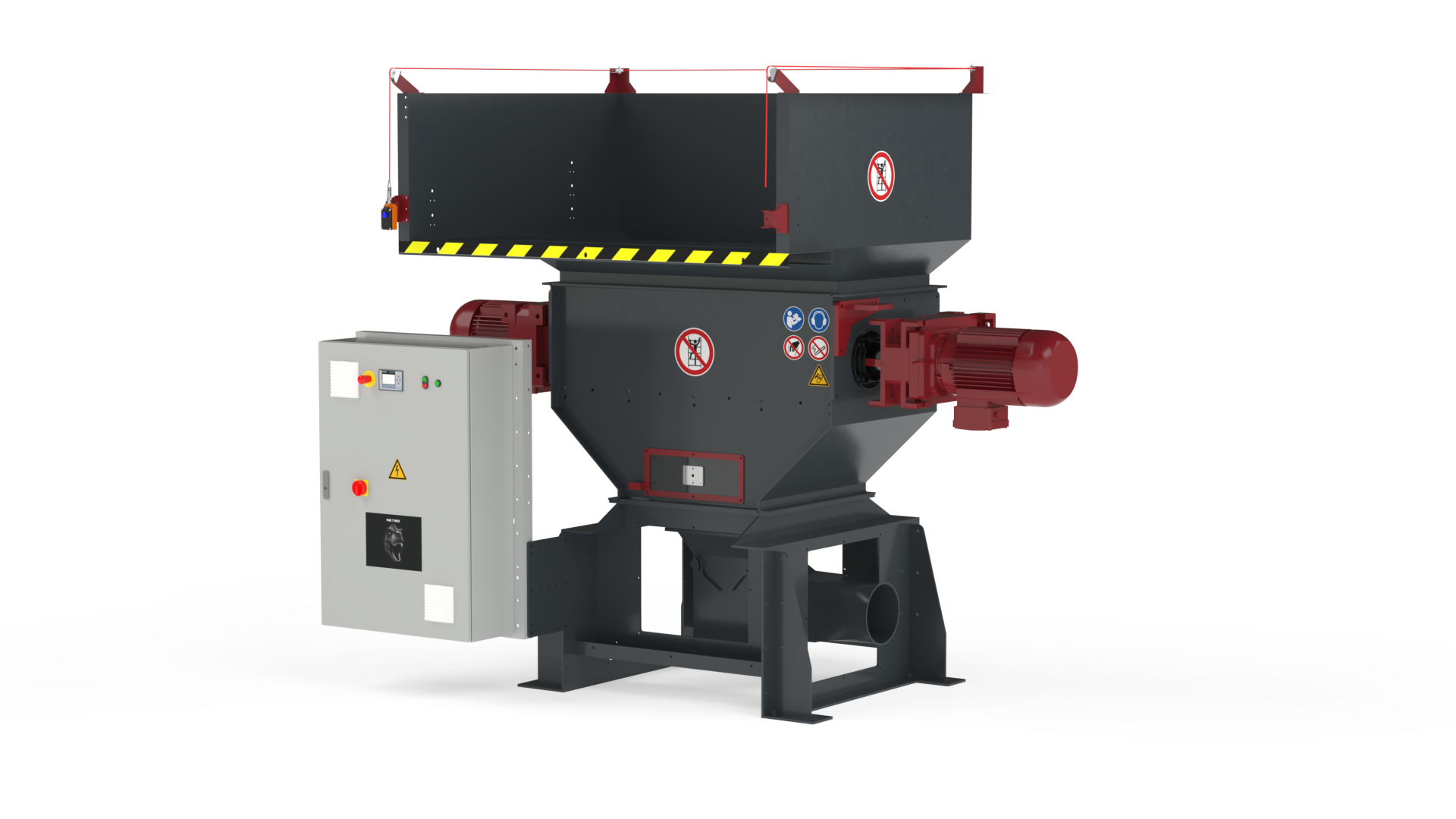

THE T-REX.
GRAVITY | EPS HEAVY
Shredding system for very heavy EPS foam parts up to 150 g/l.
Model variant with extremely strong pre-crusher for vertical feeding.
The end product is extracted by a blower.
Used for daily processing of small to very large quantities.
Suitable for small to very large parts.
Sizes
THE T-REX 1200 GRAVITY EPS HEAVY | 600 Kg/h
THE T-REX 1400 GRAVITY EPS HEAVY | 800 Kg/h
THE T-REX 1600 GRAVITY EPS HEAVY | 1.000 Kg/h
THE T-REX 2000 GRAVITY EPS HEAVY | 1.200 Kg/h
THE T-REX 2000 XL GRAVITY EPS HEAVY | 1.500 Kg/h
Materials
EPS molded parts and packaging up to 40 g/l | EPS paletts | EPS insulation boards up to 40 g/l | EPS Facade insulation panels | EPS molded parts and packaging up to 150 g/l | EPS insulation boards up to 150 g/l
Industries
Insulation manufacturer | Precast concrete element manufacturer | EPS packaging and molded parts manufacturer | Recycling plants for plastic waste
Options
Conveyor belt for more efficient feeding | Individually configurable silo size | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

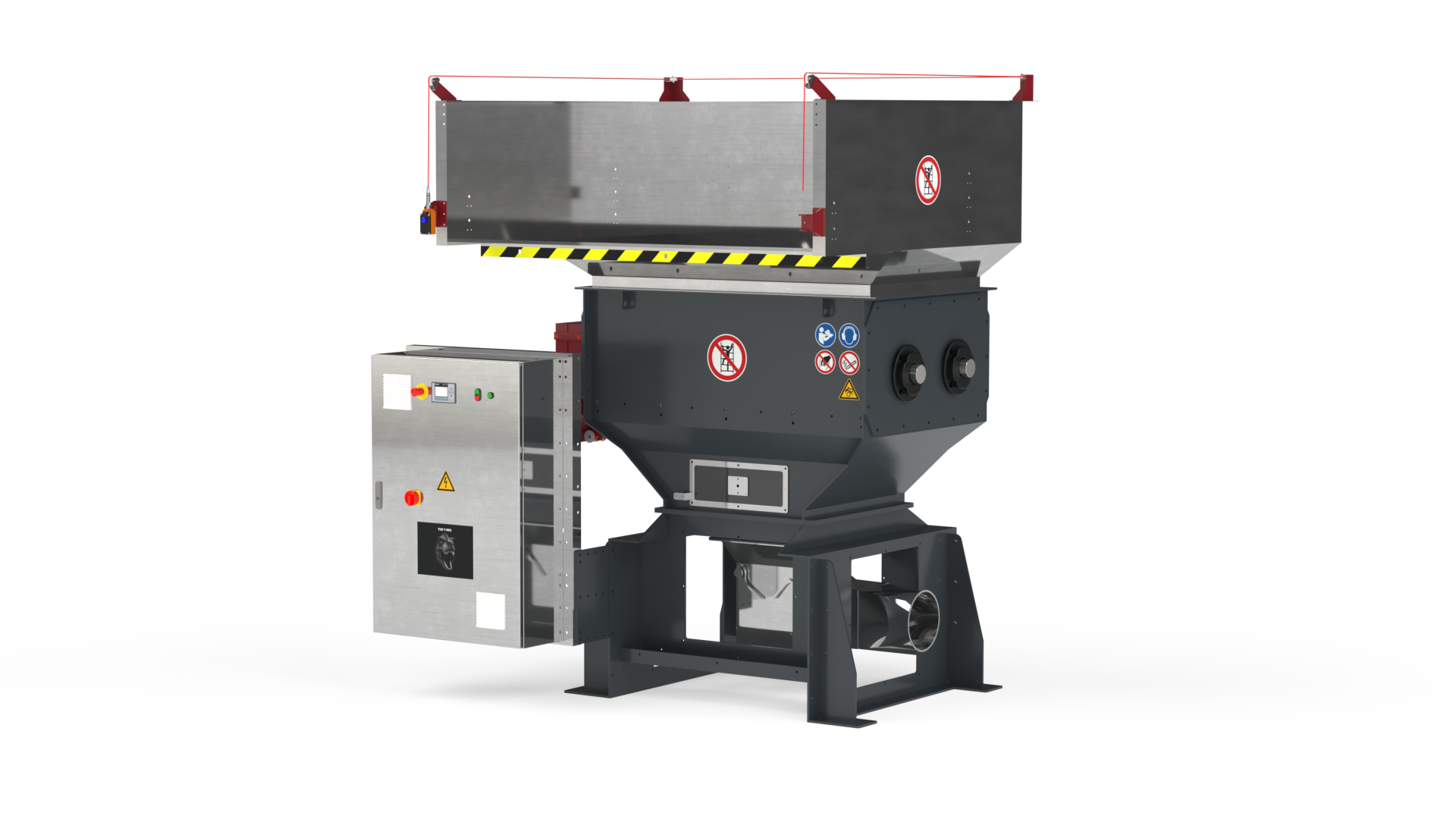

THE T-REX.
GRAVITY | EPS FISH BOXES
Shredding system for EPS fish boxes.
Model variant with pre-crusher for vertical feeding. End product is extracted with a blower.
Corrosion-protected design for processing wet EPS fish boxes.
Used for daily processing of small to very large quantities.
Suitable for small to large parts.
Sizes
THE T-REX 1000 GRAVITY EPS FISH BOXES | 300 Kg/h
THE T-REX 1200 GRAVITY EPS FISH BOXES | 450 Kg/h
THE T-REX 1400 GRAVITY EPS FISH BOXES | 600 Kg/h
THE T-REX 1400 XL GRAVITY EPS FISH BOXES | 800 Kg/h
THE T-REX 1600 XL GRAVITY EPS FISH BOXES | 1.000 Kg/h
THE T-REX 2000 XL GRAVITY EPS FISH BOXES | 1.200 Kg/h
Materials
EPS fish boxes, wet
Industries
Fishing industry | Fish markets | Delicatessens | Waste management companies | Recycling plants for plastic waste | Recycling companies in general
Options
Conveyor belt for more efficient feeding | Individually configurable silo size | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

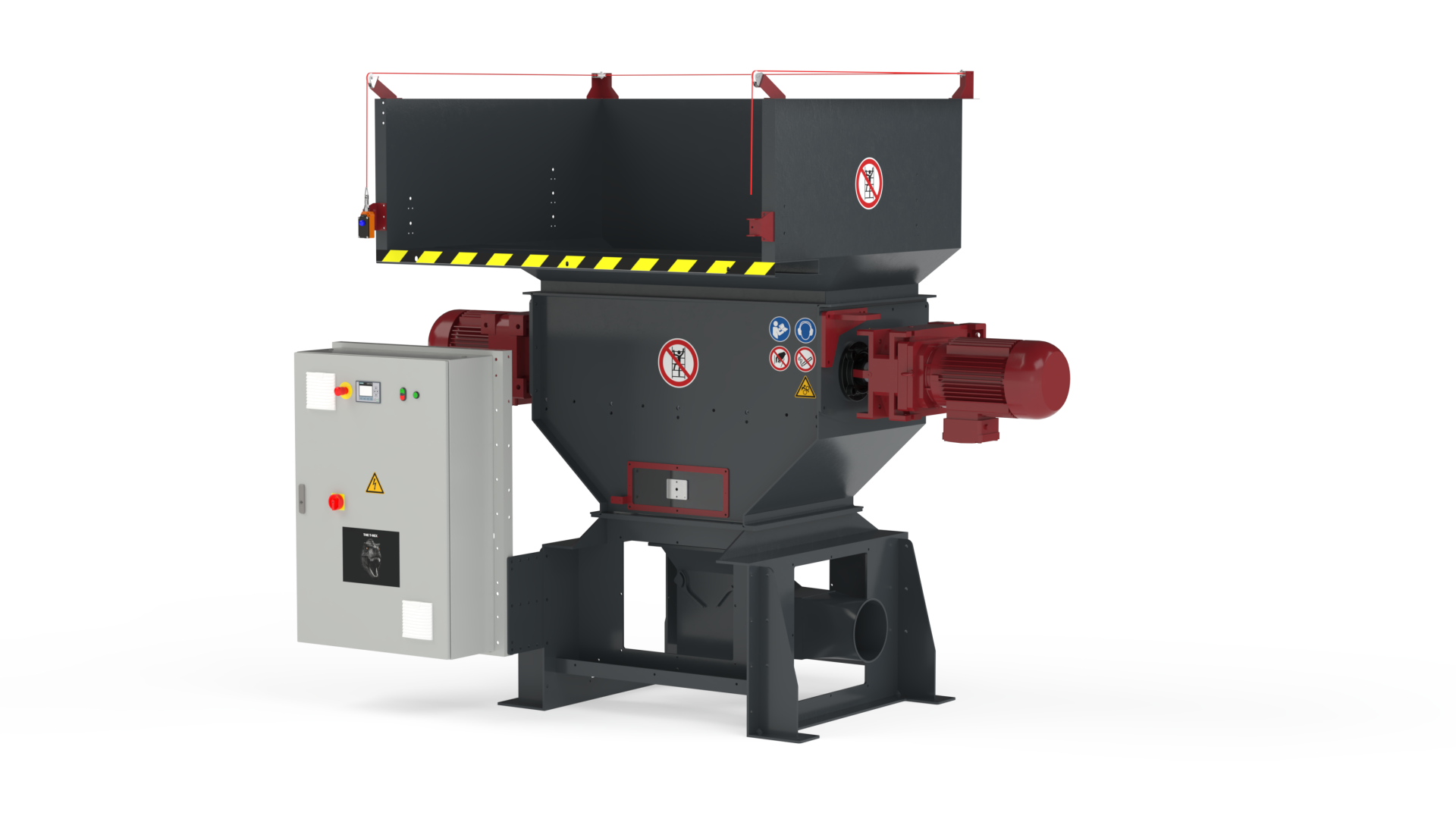

THE T-REX.
GRAVITY | XPS
Shredding system for XPS insulation boards.
Model variant with pre-crusher for vertical feeding. The end product is extracted with a blower.
Used for daily processing of small to very large quantities.
Suitable for board thicknesses up to 300 mm.
Sizes
THE T-REX 1000 GRAVITY XPS | 300 Kg/h
THE T-REX 1200 GRAVITY XPS | 450 Kg/h
THE T-REX 1400 GRAVITY XPS | 600 Kg/h
THE T-REX 1500 GRAVITY XPS | 800 Kg/h
THE T-REX 1600 GRAVITY XPS | 1.000 Kg/h
Materials
XPS insulation boards | XPS insulation boards with bitumen or tar adhesions | XPS insulation boards with plaster adhesion | STYRODUR® insulation boards
Industries
Prefabricated house manufacturer | Caravan manufacturer | Insulation manufacturer | Recycling plants for plastic waste | Specialist waste management companies | Construction industry
Options
Individually configurable silo size | Soundproof cabin for blower | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

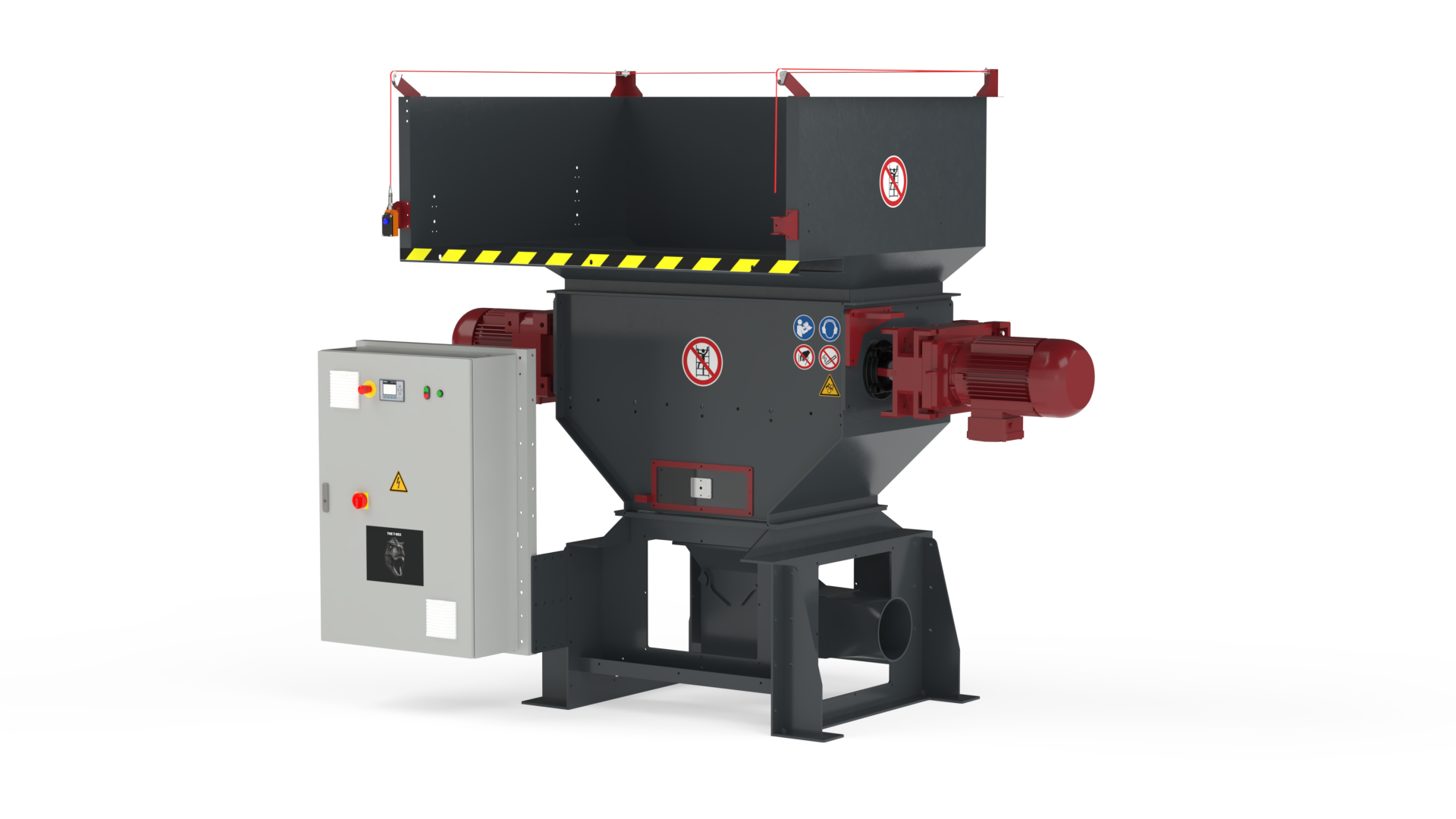

THE T-REX.
GRAVITY | EPP
Shredding system for foam parts made of EPP up to 100 g/l.
Model variant with strong pre-crusher for vertical feeding.
The end product is extracted by a blower.
Used for daily processing of small to very large quantities.
Suitable for small to very large parts
Sizes
THE T-REX 1000 GRAVITY EPP | 300 Kg/h
THE T-REX 1200 GRAVITY EPP | 450 Kg/h
THE T-REX 1400 GRAVITY EPP | 600 Kg/h
THE T-REX 1500 GRAVITY EPP | 700 Kg/h
THE T-REX 1600 GRAVITY EPP | 800 Kg/h
Materials
EPP molded parts and packaging | EPP heat and insulation boxes | EPP load carrier | EPP boards
Industries
EPP packaging manufacturer | EPP load carrier manufacturer | Recycling plants for plastic waste | Specialist waste management companies | Automotive industry | Supplier for the automotive industry
Options
Conveyor belt for more efficient feeding | Individually configurable silo size | Soundproof cabin for blower | Closed sound insulation hood with strip curtain

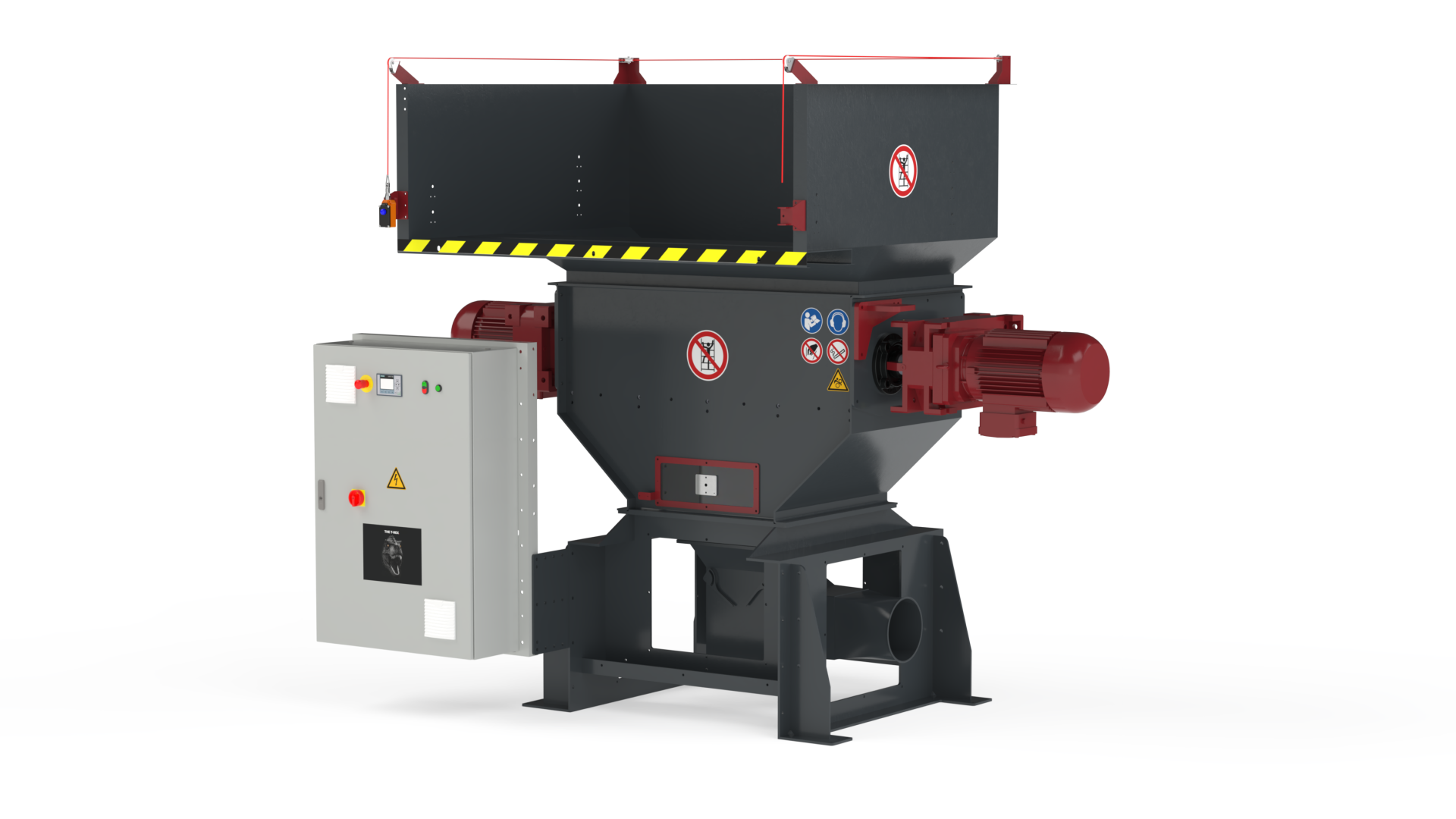

THE T-REX.
GRAVITY | EPE
Shredding system for foam parts made of EPE.
Model variant with strong pre-crusher for vertical feeding.
The end product is extracted by a blower.
Used for daily processing of small to very large quantities.
Suitable for small to very large parts.
Sizes
THE T-REX 1000 GRAVITY EPE | 150 Kg/h
THE T-REX 1200 GRAVITY EPE | 200 Kg/h
THE T-REX 1400 GRAVITY EPE | 300 Kg/h
THE T-REX 1500 GRAVITY EPE | 450 Kg/h
THE T-REX 1600 GRAVITY EPE | 600 Kg/h
Materials
EPE particle foams, molded parts and packaging | EPE foam not cross-linked, molded parts and packaging | EPE foam cross-linked, molded parts and packaging | EPE foam film
Industries
Recycling plants for plastic waste | EPE packaging manufacturer
Options
Conveyor belt for more efficient feeding | Soundproof cabin for blower

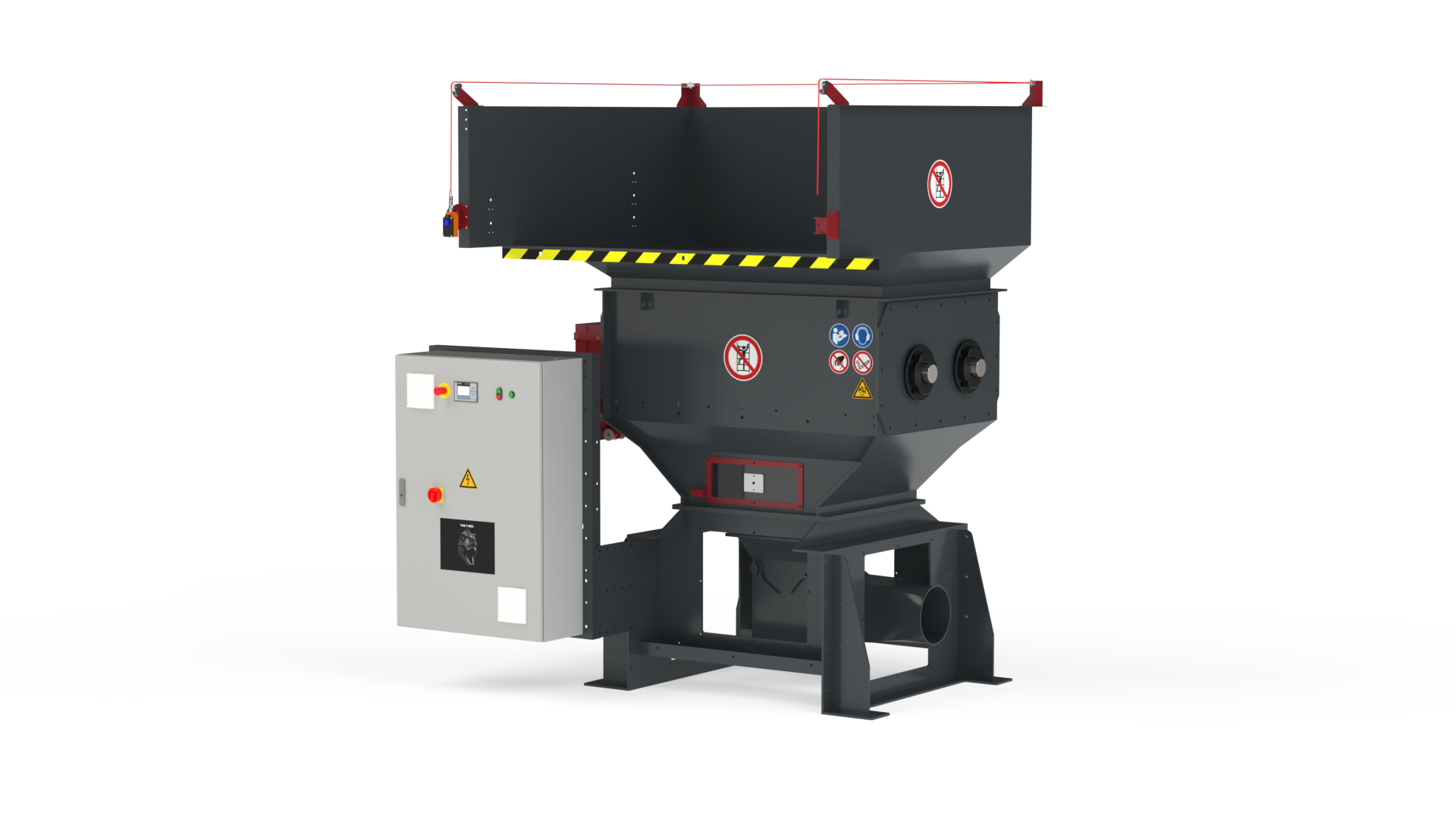

THE T-REX.
GRAVITY | PUR RIGID
Shredding system for insulation boards made of PUR rigid foam.
Model variant with pre-crusher for vertical feeding. The end product is extracted by a blower.
Closed feed hood with suction nozzle for connection to an on-site dust filter system.
Used for daily processing of small to very large quantities.
Suitable for panel thicknesses up to 300 mm.
Sizes
THE T-REX 1000 GRAVITY PUR RIGID | 300 Kg/h
THE T-REX 1200 GRAVITY PUR RIGID | 450 Kg/h
THE T-REX 1400 GRAVITY PUR RIGID | 600 Kg/h
THE T-REX 1500 GRAVITY PUR RIGID | 800 Kg/h
THE T-REX 1600 GRAVITY PUR RIGID | 1.000 Kg/h
Materials
PUR rigid foam panels | PUR insulation boards
Industries
Insulation manufacturer | Specialist waste management companies | Recycling plants for plastic waste | Construction industry
Options
Dust filter system
THE T-REX.
GRAVITY | CARDBOARD
Shredding system for cardboard packaging.
Model variant with shredder for vertical feeding.
Material discharge via screw or suction.
Used for daily processing of small to large quantities.
Suitable for small to medium-sized packaging.
Sizes
THE T-REX 700 GRAVITY CARDBOARD | 250 Kg/h
THE T-REX 1000 GRAVITY CARDBOARD | 350 Kg/h
THE T-REX 1200 GRAVITY CARDBOARD | 450 Kg/h
Materials
Cardboard, cubic packaging, empty | Corrugated board | Cardboard box punching grid
Industries
Logistics center | Shopping centers | Cardboard packaging manufacturer
Enquiry about the product.
If you have any questions about this product or require further information, please do not hesitate to contact us. Please fill out the form below to send your enquiry to our sales team. We will be happy to help you and provide you with the information you require.
